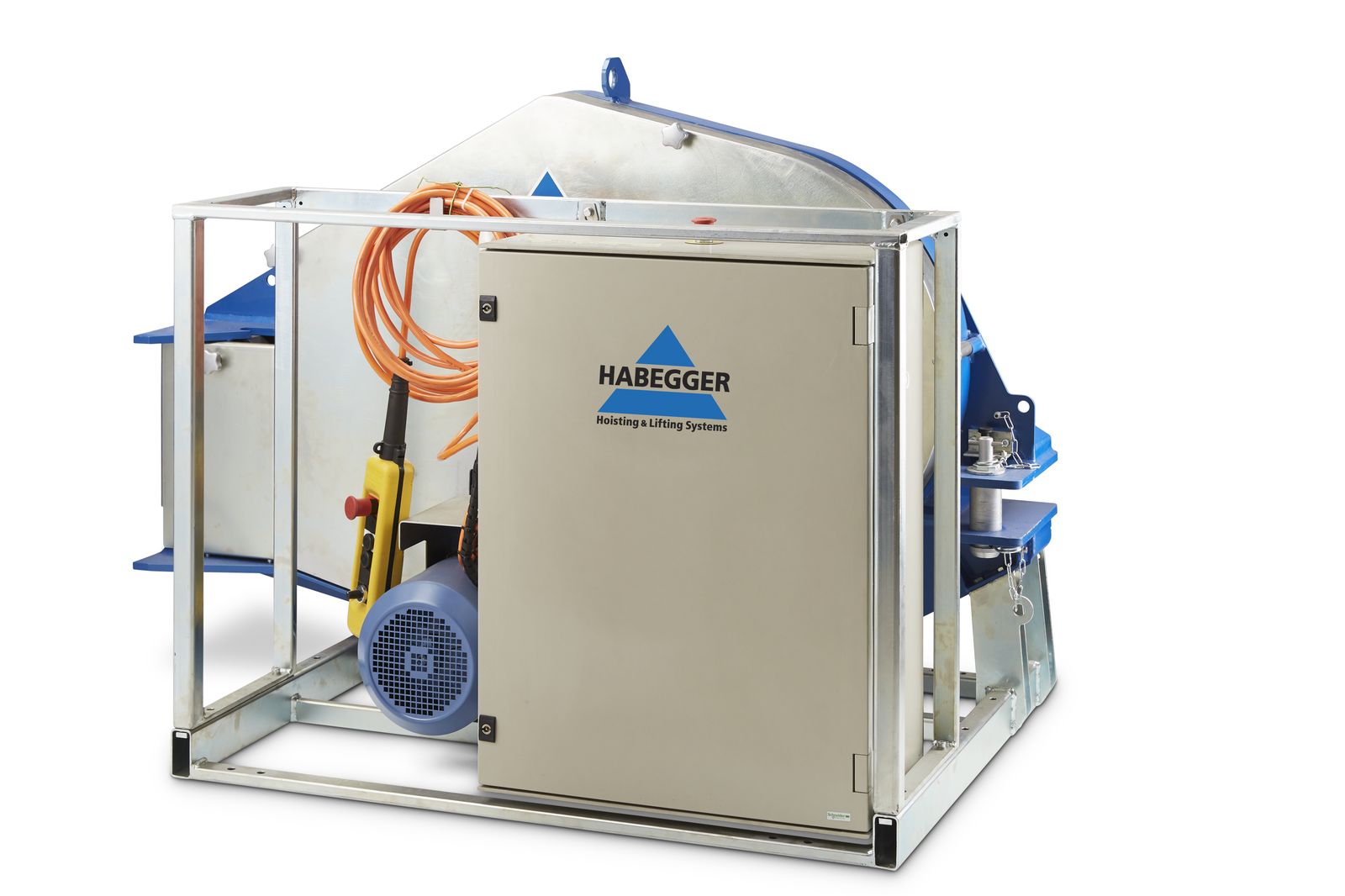

With the HIT-TRAC 128E equipped with a high-performance three-phase electric motor, extremely heavy loads can be lifted, pulled and lowered powerfully, safely and with full control even in the most demanding industrial rope-based applications. Designed for professional use in high-capacity cableway systems, complex construction sites and long-distance material handling, this rope hoist represents the ideal solution for continuous and high-intensity operations.
The efficient power transmission and the advanced control system ensure reliability, precision and safety during all working phases. The integrated overload protection system and the heavy-duty industrial construction allow stable operation even under very high loads, while the unlimited rope length offers maximum flexibility for rope-based system configurations.
Ideal for:
- High-capacity industrial cableway systems
- High-altitude construction sites and special operations
- Heavy material transport over long distances
- Energy and mining applications
- High-capacity custom rope installations
| Technical specifications | HIT-TRAC 128E |
| Rated load (pulling, lifting, lowering) | 12,800 kg |
| Thermal overload protection (thermocouples) | Yes |
| Rope speed | 0.5 – 2.5 m/min |
| Rope length | Unlimited |
| Weight incl. motor | 860 kg |
| Wire rope diameter | 28 mm |
| Minimum breaking load of rope | 640 kN (65,280 kg) |
| Three-phase electric motor | 50 Hz / 400 V, 15.1 A |
| Power | 7.5 kW |
| Duty cycle (ED) | 100 % |
| Control with emergency operation | Yes |
