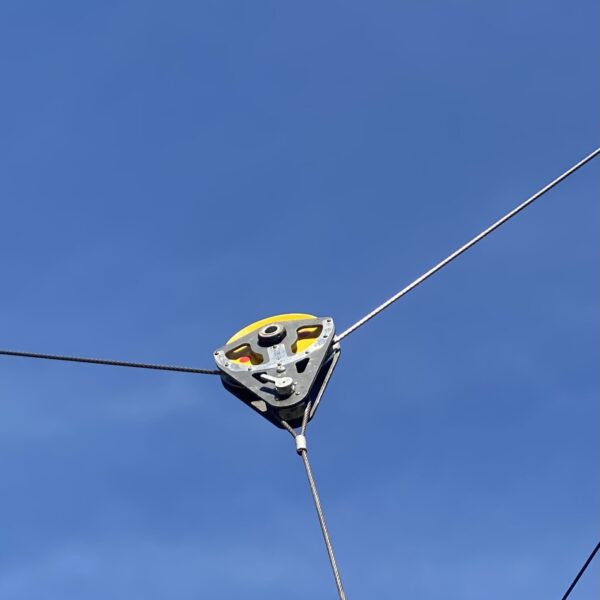

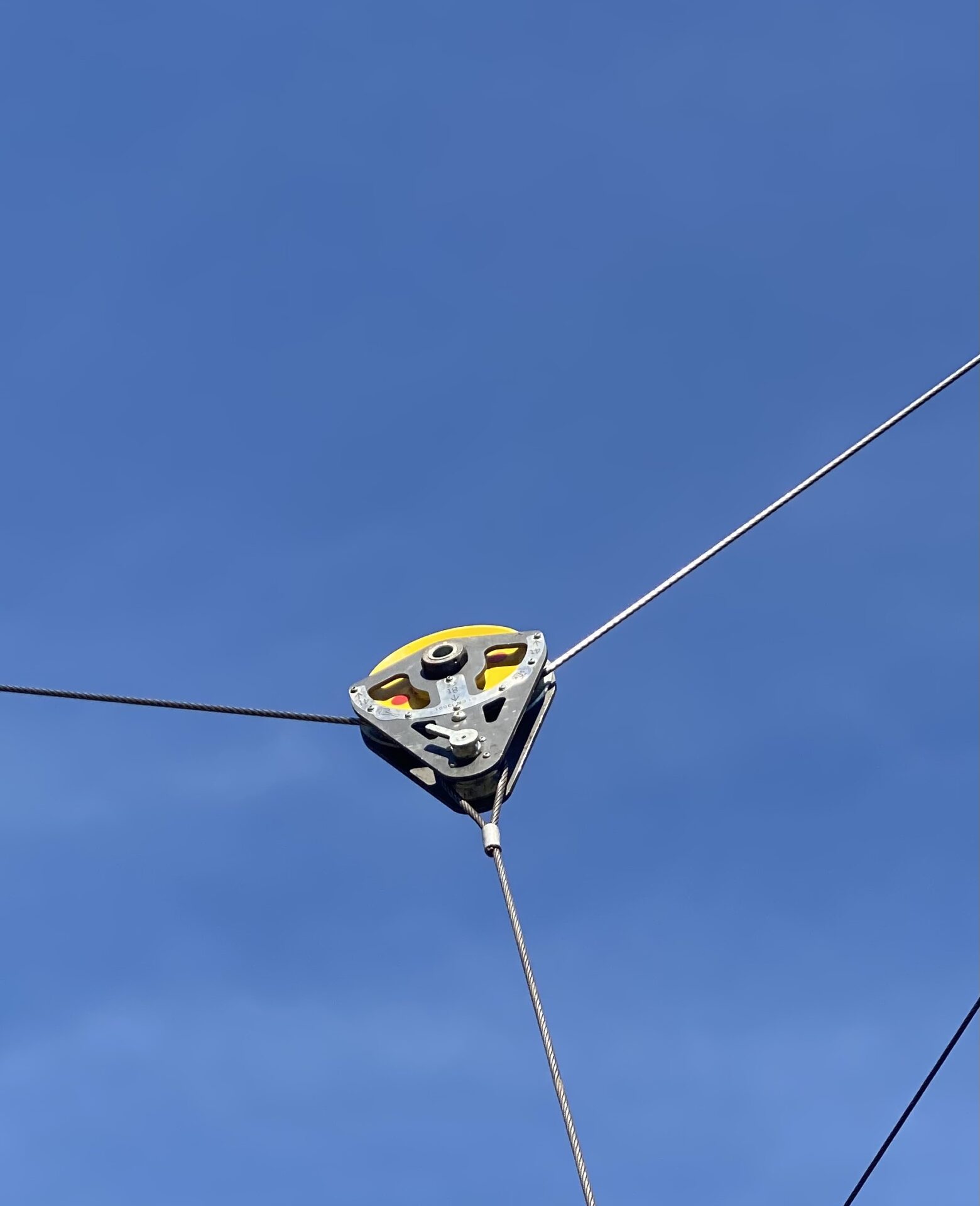

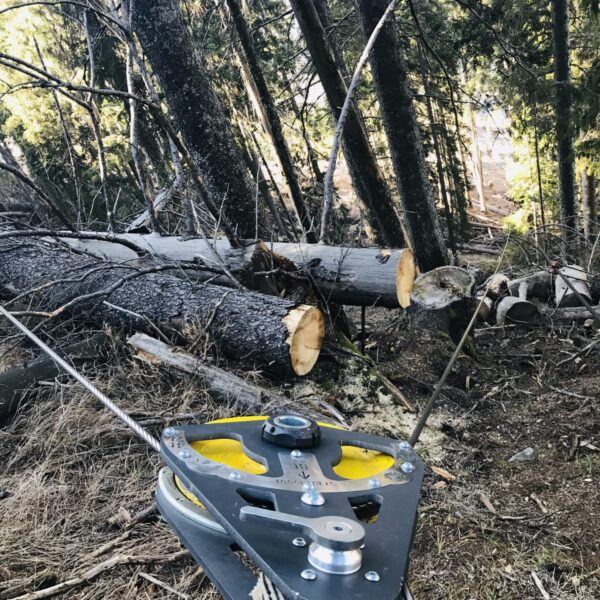

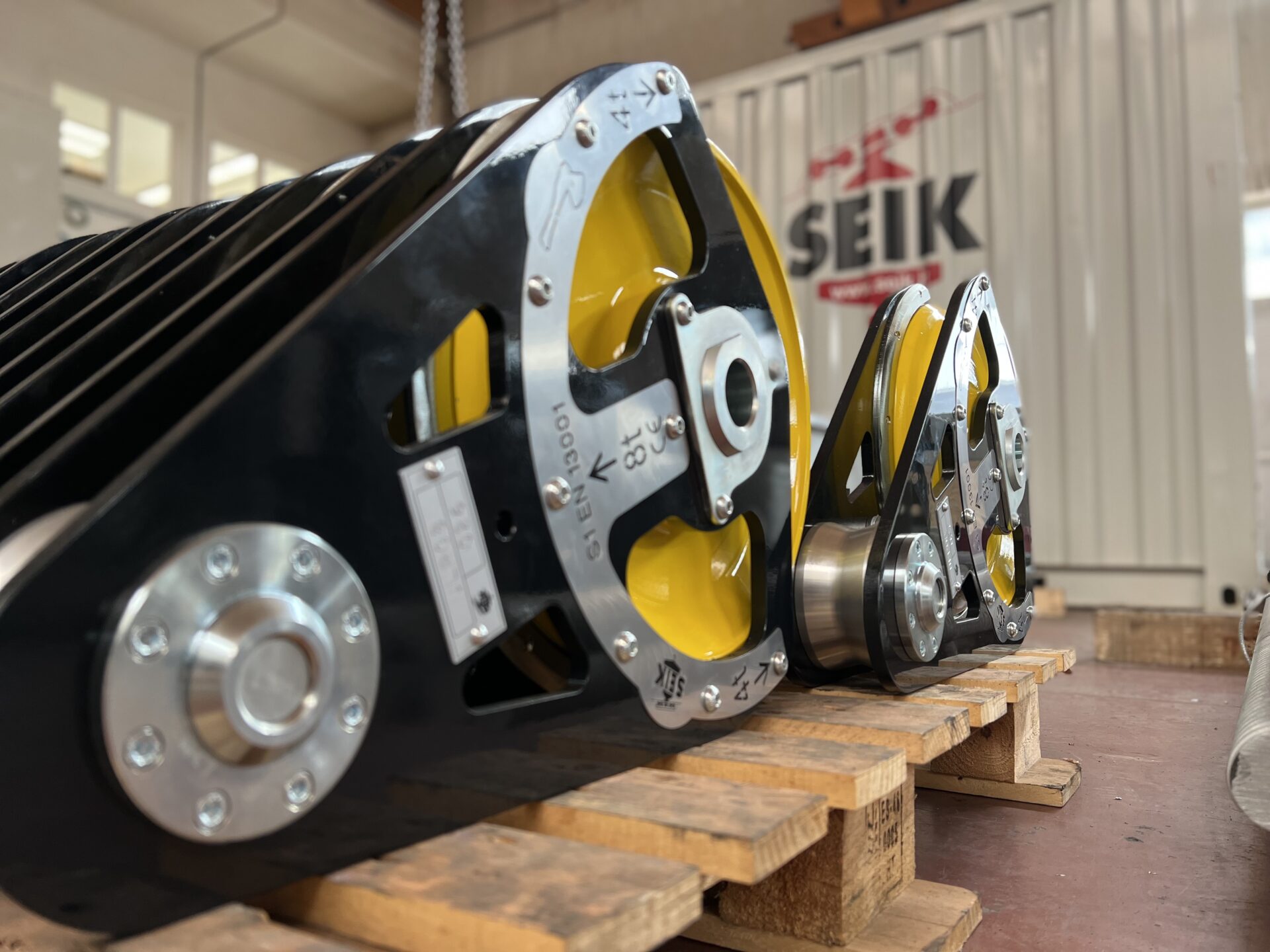

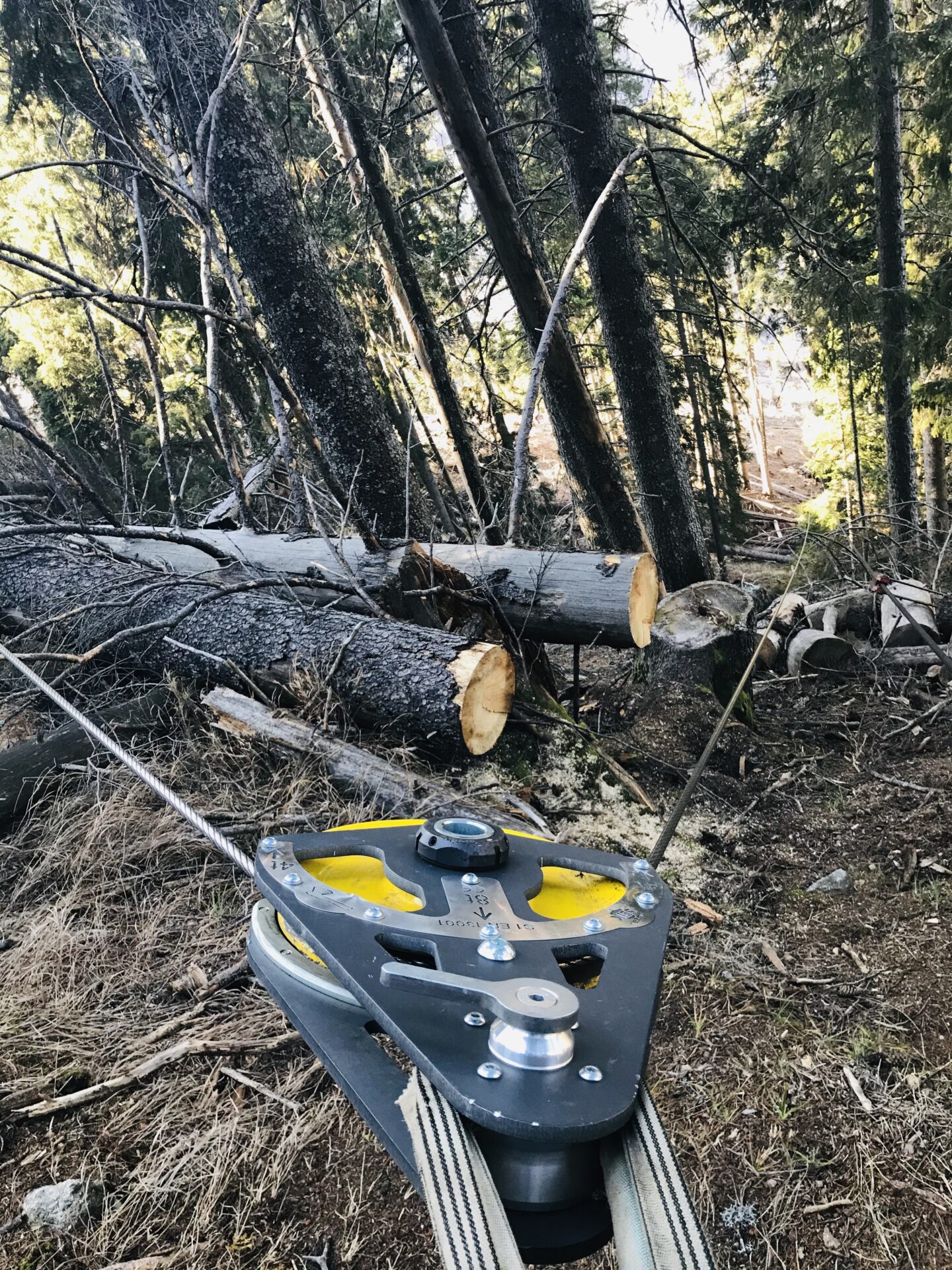

Deflection Pulleys

Technical Specifications

  • Weight (kg): From 12 to 29
  • Rope diameter (mm): From 10 to 20
  • Pulley diameter (mm): From 200 to 300

Performance

  • Rope force (kN): From 20 to 60
  • Total force (kN): From 40 to 120

The Seik pulleys are available in the following variants:

Pulley 2 t:

  • Pulley diameter: 200 mm
  • Rope force: 2 t
  • Total force: 4 t
  • Dimensions: 457 x 270 x 128 mm

Pulley 4 t:

  • Pulley diameter: 280 mm
  • Rope force: 4 t
  • Total force: 8 t
  • Dimensions: 565 x 360 x 128 mm

Pulley 6 t:

  • Pulley diameter: 300 mm
  • Rope force: 6 t
  • Total force: 12 t
  • Dimensions: 645 x 400 x 144 mm
