Single-Layer Winch

Technical Specifications

  • Weight - machine body (kg): From 35000 to 59000
  • Power (kW): From 250 to 900
  • Rope capacity (m): From 708 to 1280
  • Rope diameter (mm): From 28 to 32

Performance

  • Speed (m/s): From 1,5 to 3
  • Pulling force (kN): From 220 to 460

Brochure

  • Download here:

Note: The data presented refer to winches manufactured to date. All specifications are subject to modification and can be customized in accordance with customer requirements.

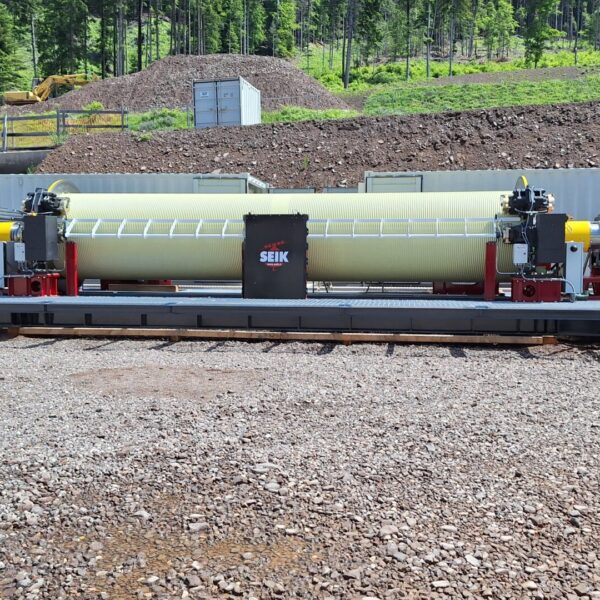

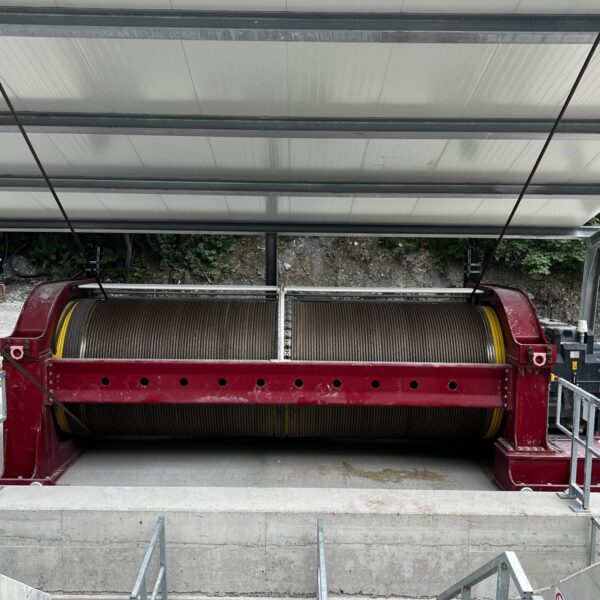

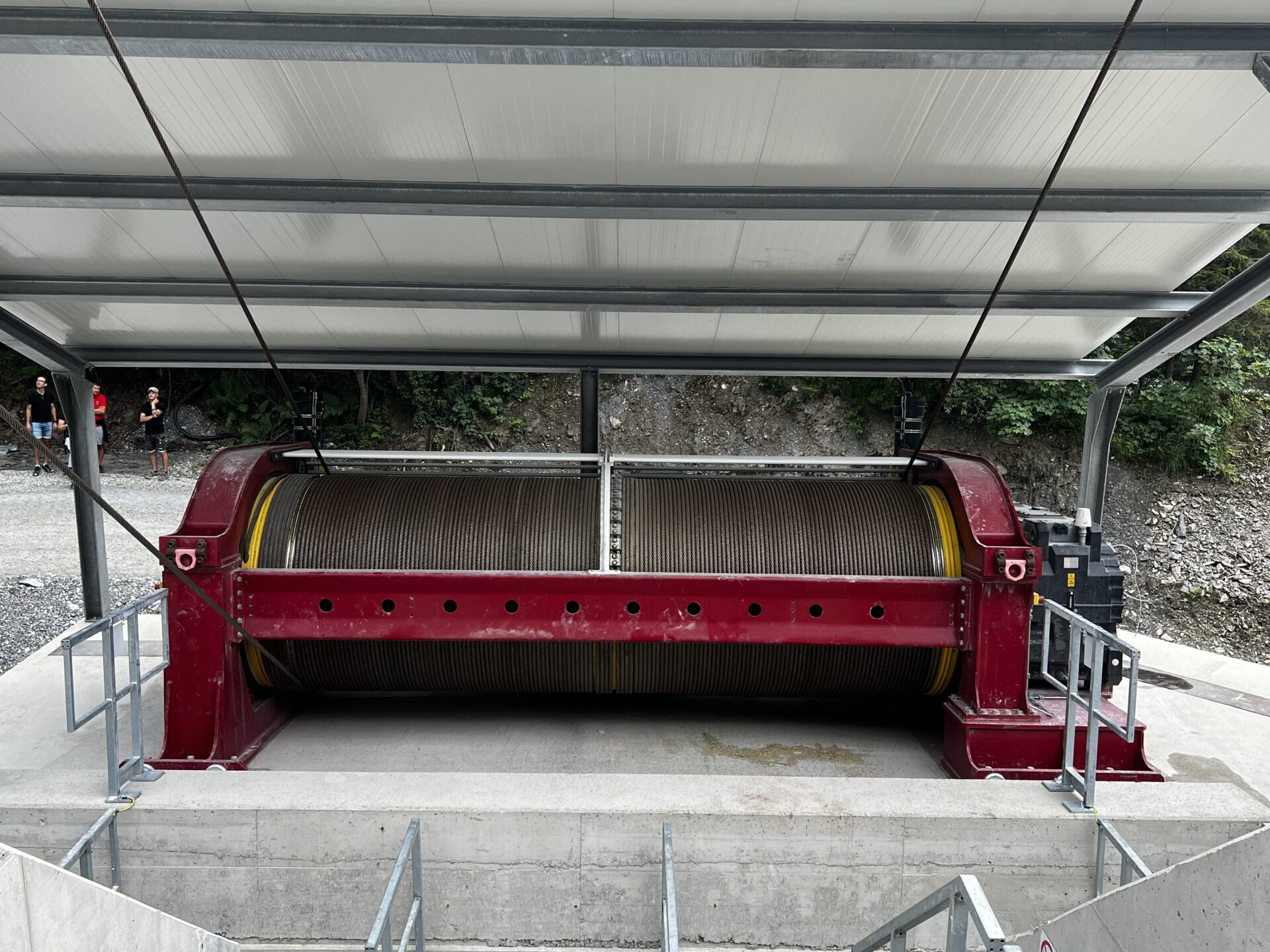

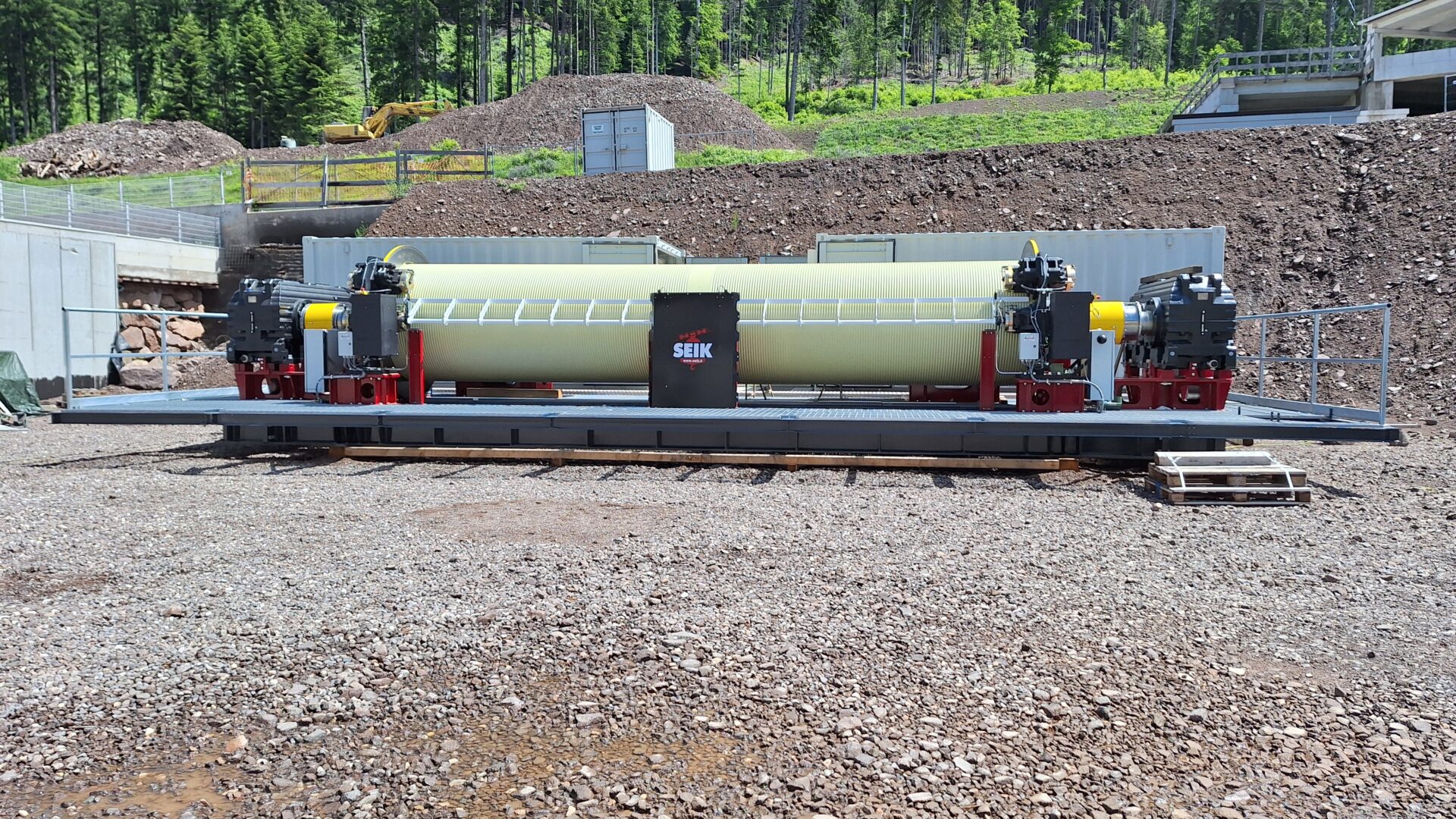

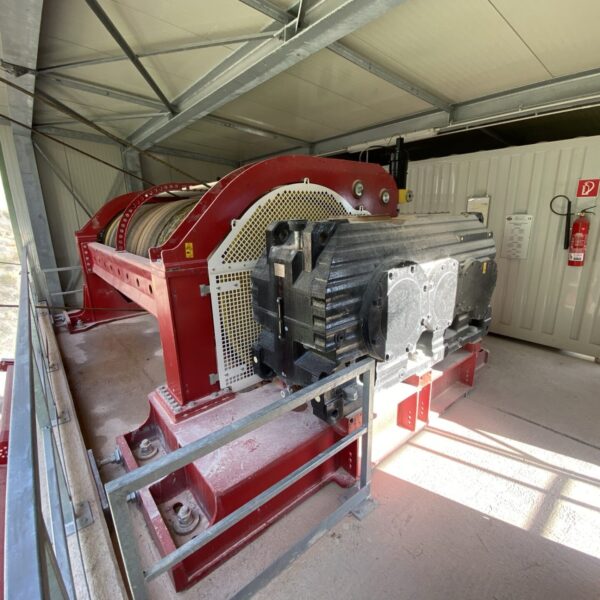

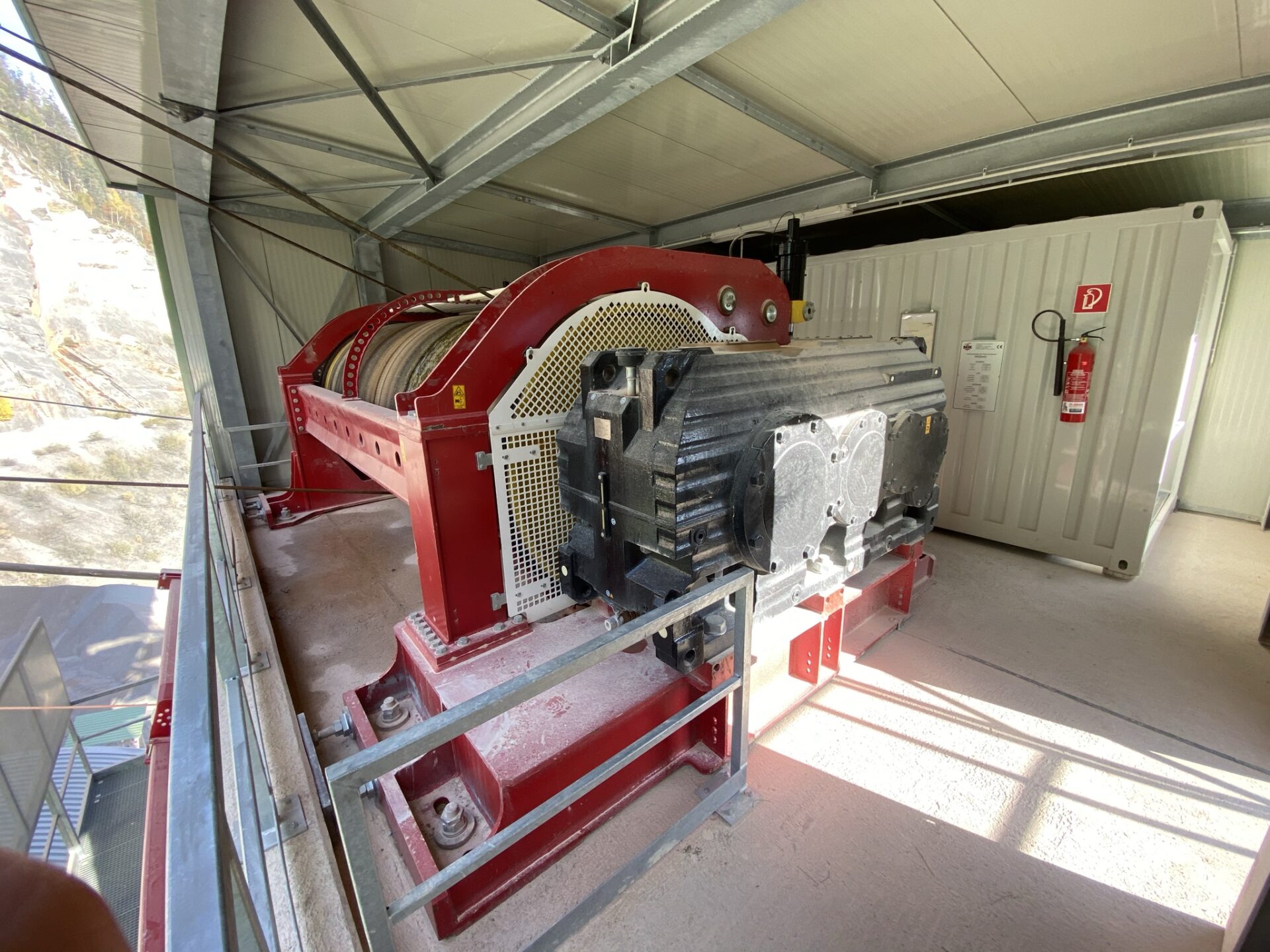

Seik’s single-layer winch drives multiple ropes in perfect synchrony, ensuring maximum power and precision, while the single-layer technology helps minimize rope wear. The system is based on an electric motor and can be powered either by the electrical grid or by a dedicated PowerPack equipped with a diesel engine.

The optional redundancy system, featuring dual independent electric motors, ensures operational continuity even in the event of a failure, while the optional radio remote control enables remote operation of the winch, increasing flexibility, safety, and efficiency. Safety is further ensured by two passive and independent braking systems.
